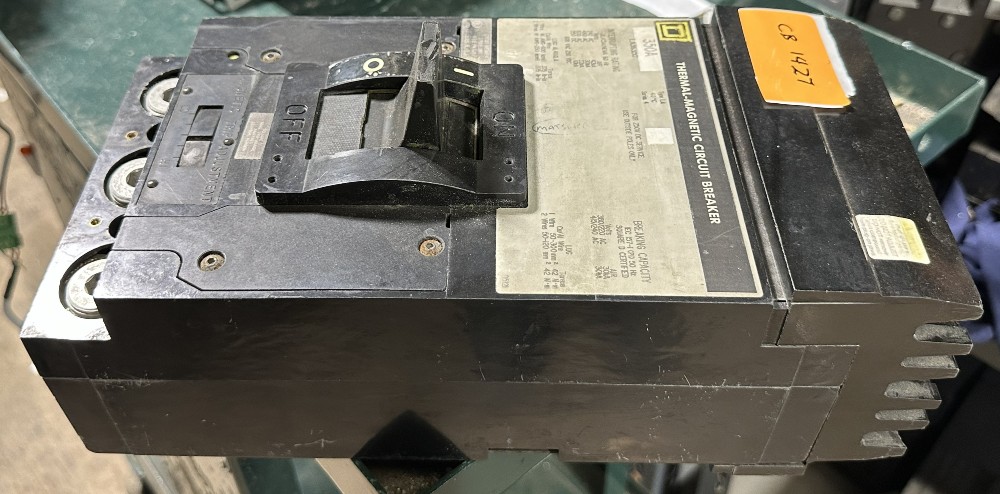

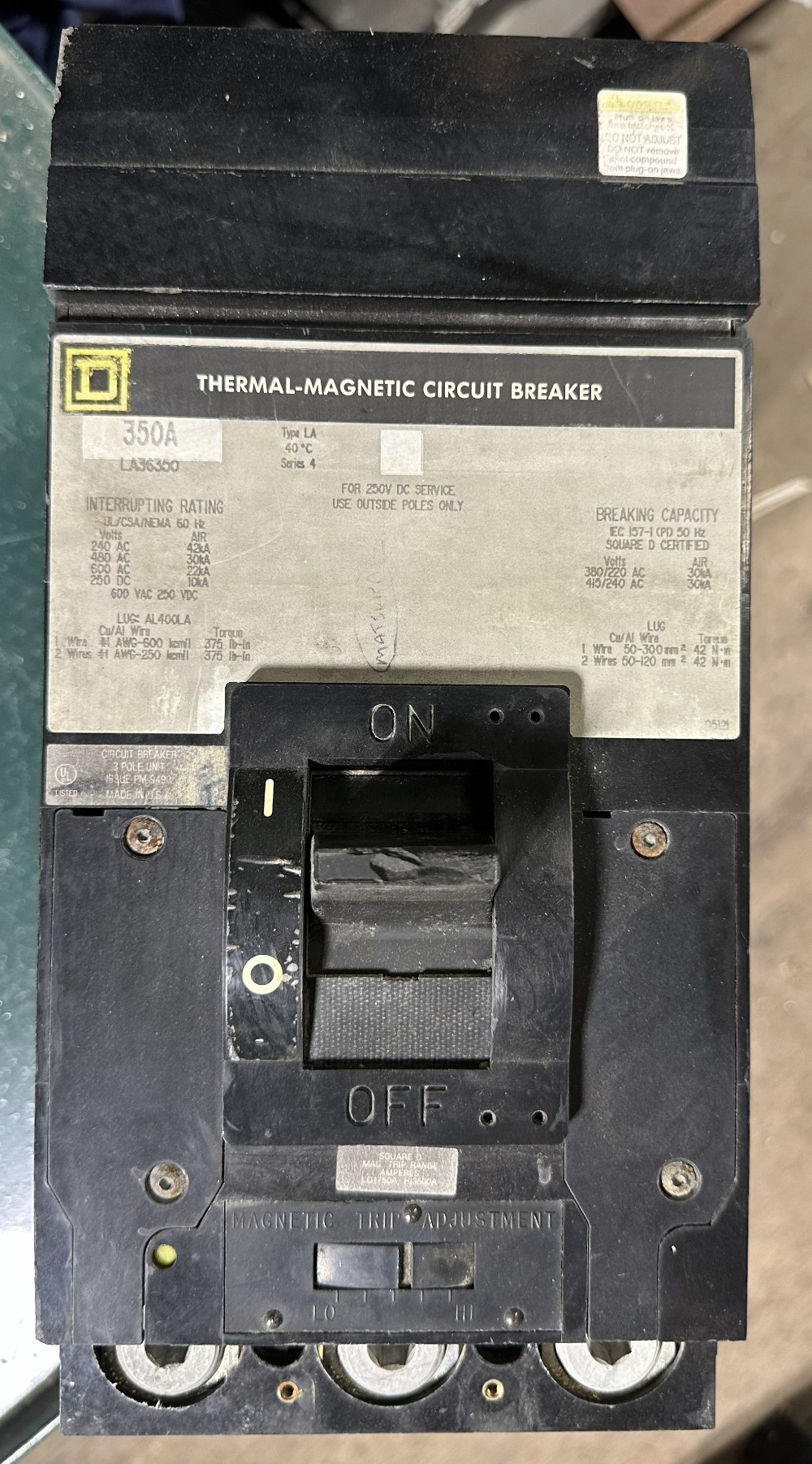

350 Amps, Square D Circuit Breaker, LA Series 4, 3-Pole, 600V Max., Thermal-Magnetic Adjustable Trip, 1750A to 3500A

Details

Description

Square D, LA Series 4 Circuit Breaker

>> Qty 1 In Stock <<

>> CALL for Price >>

LA Series 4
3-Pole
350A
600V Max.

Thermal-Magnetic Adjustable Trip
* Adjustment Range 1750A to 3500A

Frame Cat. No. LA36350

*For 250V DC Service; Use Outside Poles ONLY

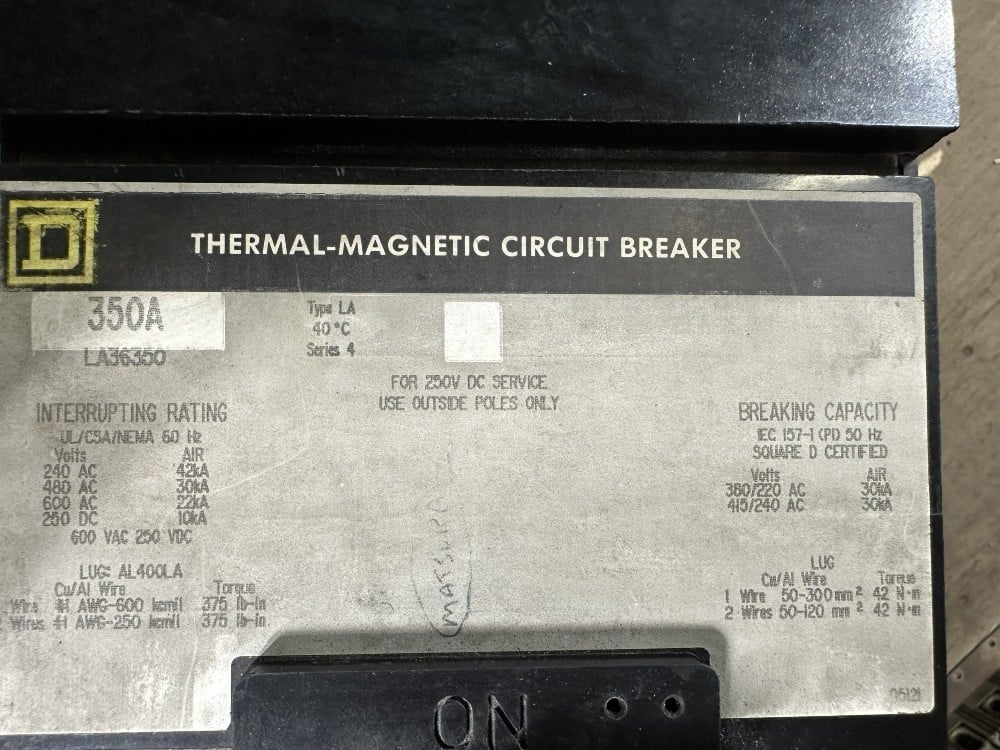

IR Ranges:

42 kA @ 240 VAC
30 kA @ 480 VAC
22kA @ 600 VAC

10 kA @ 250 VDC

Ul Listed
CSA
NEMA

30 kA @ 380 / 220 VAC and @ 415 / 240 VAC
* Square D Certified
